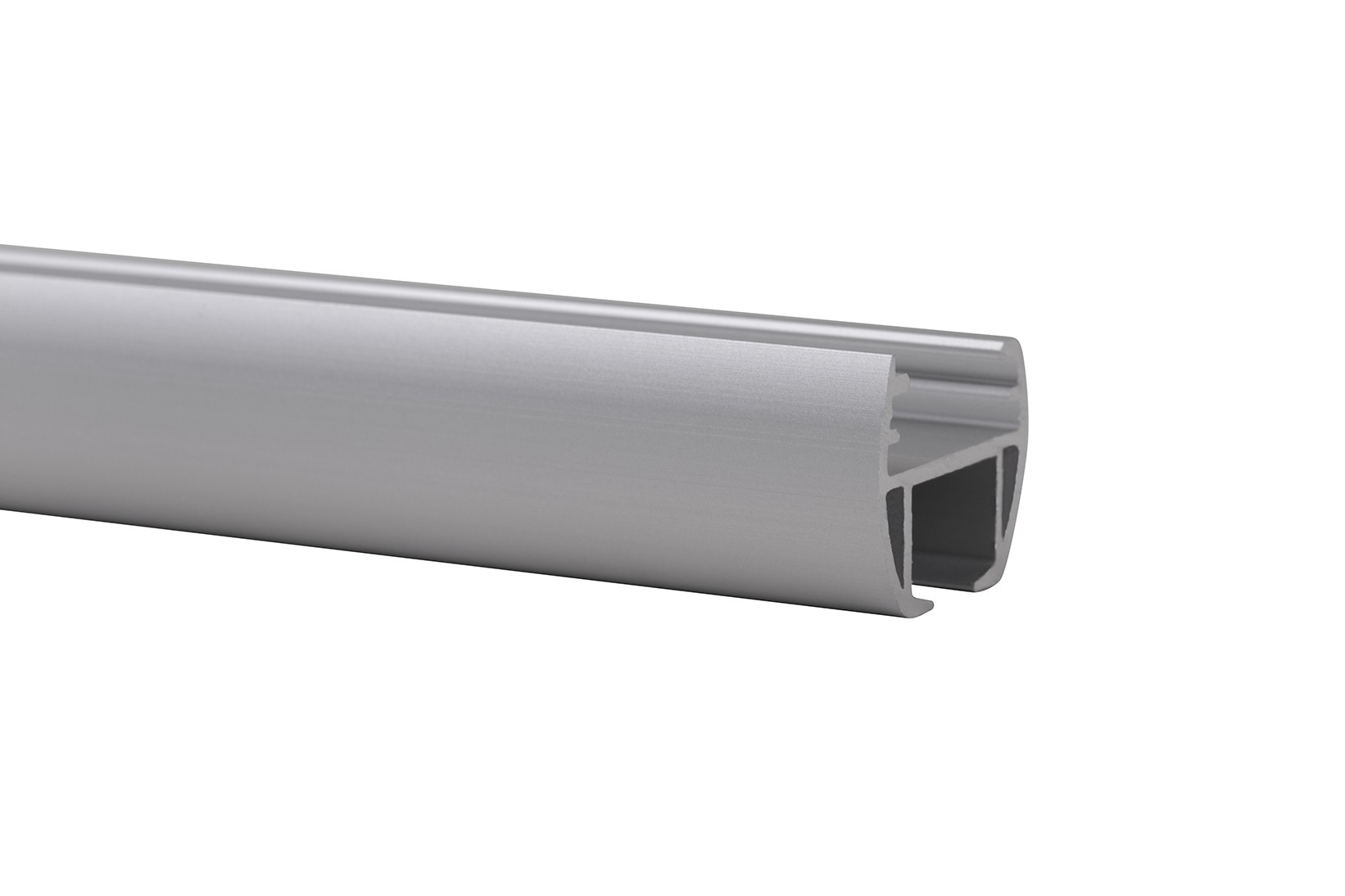

The Goelst 4400 track is an elegant rounded profile that can be invisibly mounted on a ceiling. The flange on the visible side minimises the gap between the ceiling and the track. The curtains glide smoothly virtually without sound. The track can be easily mounted on a ceiling in various ways. A very popular track that can be used in a wide variety of situations, such as private homes, but also in office buildings and in the care sector.
Features
- The ideal track for sheers, medium-weight or heavy curtains
- Elegant curved track that can be invisibly mounted on a ceiling
- Aluminium curtain track; can be forward or reverse bent in different radii
- Available as standard in three colours: white, black and natural anodised
- Length: 6m
- Compatible with the Goelst Flow System for regularly pleated curtains. More info about the Goelst Flow System
- High-quality coated aluminium
- Can be used with LRS gliders More info about LRS gliders
The high-quality, carefully selected materials allow curtains to run silently and smoothly, also round bends. The curtain track can be pre-formed to match customer requirements and delivered as a single piece to eliminate the disadvantage of separate bends and joins in the running length.
Specifications
- Material: aluminium
- Coating colours: white RAL9010, black RAL 9005
High quality wear-resistant, extremely colourfast, UV-resistant coating - Colours: anodised natural aluminium
- Dimensions (hxw): 18 x 21mm
- Profile weight: 229 gr/m
- Maximum supported weight guideline: see fixing guide. An additional support bracket is recommended at points where pleated curtains gather when open.
Bending
The 4400 can be forward or reverse bent to create attractive returns.
- Minimum bending radius: 10cm with bending tool 1015
- Other bending radii: 15cm with bending tool 1015
- Greater than 100cm with bending tool 1018
Standard components
Gliders, end stops, end caps:
Twelve self-lubricating 4010 gliders per metre and two 4001 end stops per track system.
Fixing:
Fixing clamp 4450, wall support bracket 4415 or adjustable wall support bracket 4417.
Accessories:
2x end caps 4253
Curtain tracks longer than the standard length can be joined together with connecting bridge 6052.
Optional components:
Gliders, end stops, end caps:
• 4010 gliders are available with various hook types.
• For perfectly closing curtains with an overlap of the curtain fabric, use pilot runner 4074-1000 or the smaller pilot runner 4075-1000.
• The 4400 curtain track is compatible with the Goelst Flow System: gliders 4014-060 or 4014-080.
• The 4012 click glider can be placed anywhere in the system. It is advisable to place gliders of this type on the stacking side.
Fixing:
• Ceiling mounting with fixing clamp 4450.
• To mount at a distance from a wall, use extension bracket 4415 or adjustable extension bracket 4417.
Accessories:
• Use the special glider stop for ‘spring-back’ curtain sets: fit the glider stop over a 4010 glider after it has been inserted in the channel profile. Several glider stops can be placed if necessary.
• Selection of various pull rods for opening and closing curtains by hand: usually used with curtains that are light in colour and show signs of wear more quickly and delicate curtain fabrics, such as sheers (in combination with lead gliders 4074-1000 or 4075-1000).
Material
Aluminium EN AW-6060 T66.
Shape and size tolerances in accordance with EN 12020.
Anodisation: in accordance with QUALANOD requirements, coating thickness 10µm. Natural colour anodised.
Powder coating: in accordance with QUALICOAT requirements, thick coating (+/- 100 µm), AkzoNobel/Goelst quality for improved gliding properties and excellent ductility. White RAL 9010 or black RAL 9005.
4400 track weight: 229 gr/m.
Standard colours
Natural – anodised
White RAL 9010 – powder coated
Black RAL 9005 – powder coated
Special colours available on request.
Standard accessories
Goelst self-lubricating gliders made from high quality plastic with added Teflon. Twelve 4010 gliders (special self-lubricating, plastic, UV-stabilised) per metre and two 4001 end stops plus two 4453 end caps per track length. Ceiling mounting with fixing clamp, including washer 4450-N (the amount required depends on the system length). Connecting bridge 4452.
Other accessories and fixing
4010 gliders are available with various hook types. End stop metal with or without eye. LRS gliders 4007-LR or heavy-duty glider 4020. Projection glider 6010. Glider stop 2004. Spring stop 4003. Overlap brackets 4074-1000 and 4075-1000.
Wall mounting with luxury model adjustable extension bracket 4417 or extension bracket 4415: for different distances from the wall.
Metal corner connector with eye 4048-08MM.
Suitable for Goelst Flow bespoke curtain systems.
Spacing between support points (cm) in accordance with the table below.
|
curtain type |
light |
medium |
heavy |
|
per package |
2 kg |
4 kg |
8 kg |
|
4400 |
80 |
60 |
40 |
General advice: place an additional bracket on the stacking side(s) and, if possible, a support point immediately before and/or after a curve.
Bending
Radius 10cm (minimum): bending tool 1015
Radius 15 cm: bending tool 1015
Radius >80cm: bending tool 1018
Maintenance
General advice: impregnate with Goelst silicon spray (1251-250) at least 1x per year.
The Goelst 4400 track is an elegant rounded profile that can be invisibly mounted on a ceiling. The flange on the visible side minimises the gap between the ceiling and the track. The curtains glide smoothly virtually without sound. The track can be easily mounted on a ceiling in various ways. A very popular track that can be used in a wide variety of situations, such as private homes, but also in office buildings and in the care sector.
Features
- The ideal track for sheers, medium-weight or heavy curtains
- Elegant curved track that can be invisibly mounted on a ceiling
- Aluminium curtain track; can be forward or reverse bent in different radii
- Available as standard in three colours: white, black and natural anodised
- Length: 6m
- Compatible with the Goelst Flow System for regularly pleated curtains. More info about the Goelst Flow System
- High-quality coated aluminium
- Can be used with LRS gliders More info about LRS gliders
The high-quality, carefully selected materials allow curtains to run silently and smoothly, also round bends. The curtain track can be pre-formed to match customer requirements and delivered as a single piece to eliminate the disadvantage of separate bends and joins in the running length.
Specifications
- Material: aluminium
- Coating colours: white RAL9010, black RAL 9005
High quality wear-resistant, extremely colourfast, UV-resistant coating - Colours: anodised natural aluminium
- Dimensions (hxw): 18 x 21mm
- Profile weight: 229 gr/m
- Maximum supported weight guideline: see fixing guide. An additional support bracket is recommended at points where pleated curtains gather when open.
Bending
The 4400 can be forward or reverse bent to create attractive returns.
- Minimum bending radius: 10cm with bending tool 1015
- Other bending radii: 15cm with bending tool 1015
- Greater than 100cm with bending tool 1018
The Goelst 4400 track is an elegant rounded profile that can be invisibly mounted on a ceiling. The flange on the visible side minimises the gap between the ceiling and the track. The curtains glide smoothly virtually without sound. The track can be easily mounted on a ceiling in various ways. A very popular track that can be used in a wide variety of situations, such as private homes, but also in office buildings and in the care sector.
Features
- The ideal track for sheers, medium-weight or heavy curtains
- Elegant curved track that can be invisibly mounted on a ceiling
- Aluminium curtain track; can be forward or reverse bent in different radii
- Available as standard in three colours: white, black and natural anodised
- Length: 6m
- Compatible with the Goelst Flow System for regularly pleated curtains. More info about the Goelst Flow System
- High-quality coated aluminium
- Can be used with LRS gliders More info about LRS gliders
The high-quality, carefully selected materials allow curtains to run silently and smoothly, also round bends. The curtain track can be pre-formed to match customer requirements and delivered as a single piece to eliminate the disadvantage of separate bends and joins in the running length.
Specifications
- Material: aluminium
- Coating colours: white RAL9010, black RAL 9005
High quality wear-resistant, extremely colourfast, UV-resistant coating - Colours: anodised natural aluminium
- Dimensions (hxw): 18 x 21mm
- Profile weight: 229 gr/m
- Maximum supported weight guideline: see fixing guide. An additional support bracket is recommended at points where pleated curtains gather when open.
Bending
The 4400 can be forward or reverse bent to create attractive returns.
- Minimum bending radius: 10cm with bending tool 1015
- Other bending radii: 15cm with bending tool 1015
- Greater than 100cm with bending tool 1018
Advice and tips
- • Advice: Place an additional support on the stacking side(s). See fixing guide.
- • Maintenance advice: for long-term optimal glider performance in every situation, we recommend using Goelst silicon spray 1251-250
- • The lead gliders are suitable for attaching to a pull rod. Using a pull rod to open and close the curtains keeps the fabric clean and prevents stains and signs of wear.
