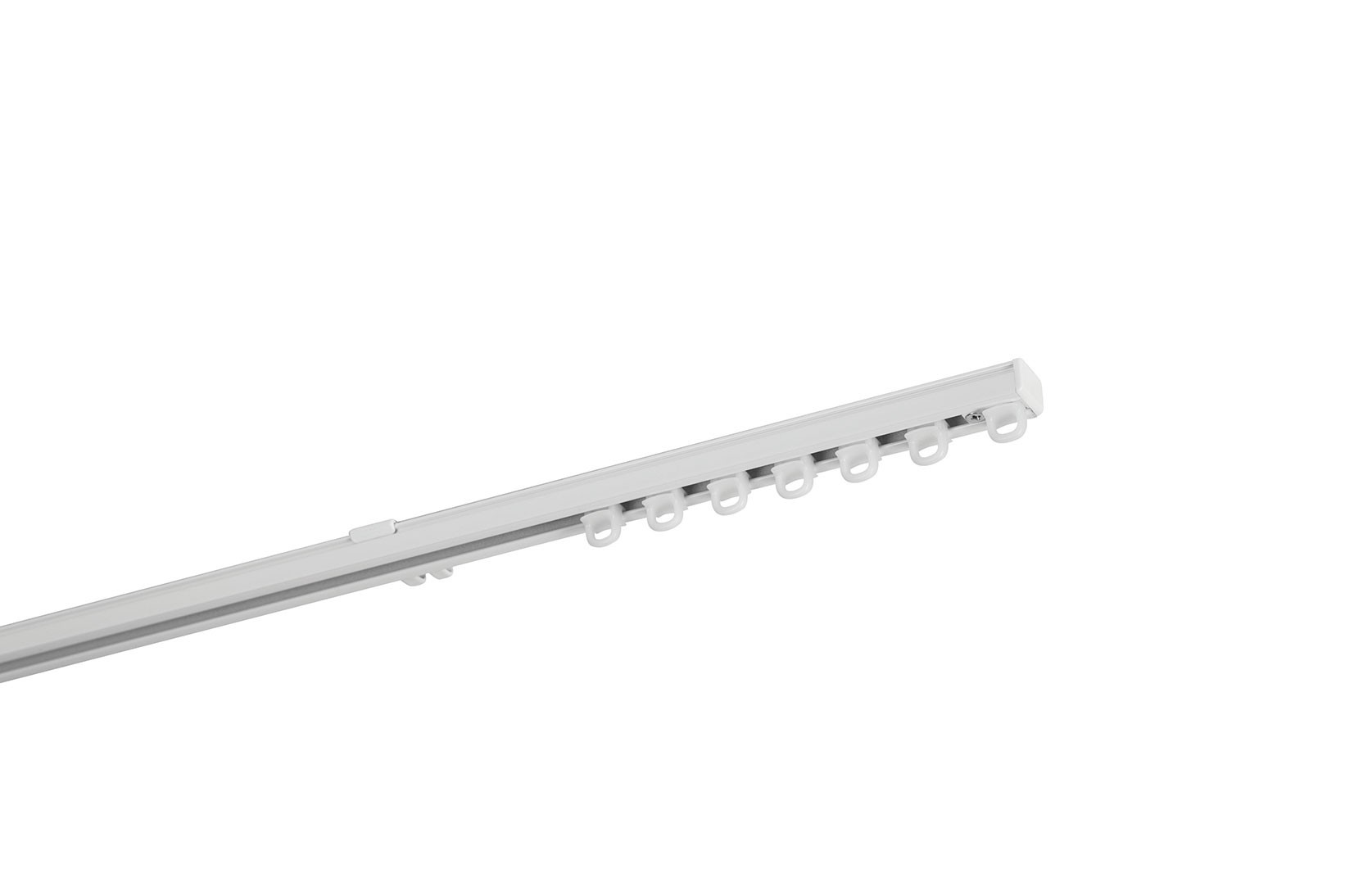

The Goelst 4701 track has an attractive rectangular profile. It is also frequently fitted in a channel cut into a wooden surface. An attractive, sleek track that can be used in your home or office building.
Features
- The ideal track for sheers and light or medium-weight curtains.
- Aluminium track; easy to bend forward or reverse in different radii
- Concealed mounting on a ceiling or using fixing bracket
- Available as standard in white and natural
- Length: 6m
- Three versions of the rail available – standard – PB pre-punched B and project special PS
- Compatible with the Goelst Flow System for regularly pleated curtains. More info about the Goelst Flow System
- High-quality coated aluminium
The high-quality, carefully selected materials allow curtains to run silently and smoothly, also round bends. The curtain track can be pre-formed to match customer requirements and delivered as a single piece to eliminate the disadvantage of separate bends and joins in the running length.
Specifications
- Material: aluminium
- Coating colours: white RAL9010
High quality wear-resistant, extremely colourfast, UV-resistant coating - Colour: anodised natural aluminium
- Dimensions (hxw): 10 x 15mm
- Profile weight: 137 gr/m
- Maximum supported weight guideline: see fixing guide. An additional support bracket is recommended at points where pleated curtains gather when open.
Bending
The 4701 can be forward or reverse bent to create attractive returns.
- Minimum bending radius: 10cm with bending tool 1012
- Standard bending radius: 10cm with bending tool 1012 or 1015
- Other bending radii: greater than 80cm with bending tool 1018
Standard components
Gliders, end stops, end caps:
Twelve self-lubricating 4010 gliders per metre and per track system plus two 4753-12 end caps; the end cap has a double function and also serves as an end stop.
Fixing:
Pozi-drive screw 2314 for concealed mounting or with ceiling support bracket 4750
Accessories:
Two 4753-12 end caps – see remark under gliders
Optional components:
Gliders, end stops, end caps:
• 4010 gliders are available with various hook types.
• For perfectly closing curtains with an overlap of the curtain fabric, use pilot runner 4074-1000 or the smaller pilot runner 4075-1000.
• Track 4701 is compatible with the Goelst Flow system: gliders 4014-060 or 4014-080.
• The 4012 click glider can be placed anywhere in the system. It is advisable to place gliders of this type on the stacking side.
Fixing:
• Concealed mounting with pozi-drive screw 2314 (recommended for wooden surfaces)
• Ceiling support bracket 4750 (recommended for concrete surfaces)
Accessories:
• Use the special glider stop for ‘spring-back’ curtain sets: fit the glider stop over a 4010 glider after it has been inserted in the channel profile. Several glider stops can be placed if necessary.
• Selection of various pull rods for opening and closing curtains by hand: usually used with curtains that are light in colour and show signs of wear more quickly and delicate curtain fabrics, such as sheers (in combination with lead gliders 4074-1000 or 4075-1000).
Material
Aluminium EN AW-6060 T66.
Shape and size tolerances in accordance with EN 12020.
Anodisation: in accordance with QUALANOD requirements, coating thickness 10µm. Natural colour anodised.
Powder coating: in accordance with QUALICOAT requirements, thick coating (+/- 100 µm), AkzoNobel/Goelst quality for improved gliding properties and excellent ductility. White RAL 9010.
4701 track weight: 137 gr/m
Standard colours
Natural – anodisedWhite RAL 9010 – powder coated
Black RAL 9005 – powder coated
Special colours available on request.
Standard accessories
Goelst self-lubricating gliders made from high quality plastic with added Teflon. Twelve 4010 gliders (special self-lubricating, plastic, UV-stabilised) per metre and two 4001 end stops plus two 4753-00 screw-on end caps per track length.
For the direct ceiling mounting of a pre-punched track (punched hole type B; round hole ø 2.5 + slotted hole 3x10mm, spacing 15cm), use pozi-drive screw 2314 (19mm). Other pre-punched hole types available on request.
Use ceiling support bracket 4750 when mounting tracks without pre-punched holes. The amount required depends on the system length.
Other accessories and fixing
4010 gliders are available with various hook types. Glider stop 2004. Spring stop 4003. Overlap brackets 4074-1000 and 4075-1000.
Suitable for Goelst Flow bespoke curtain systems.
Spacing between support points 30cm:
The sagging of the track under different curtain weights is given in the following table.
curtain type |
light |
medium |
heavy |
per package |
2 kg |
4 kg |
8 kg |
4701 |
nihil |
0,2 mm |
0,5 mm |
General advice: place an additional bracket on the stacking side(s) and, if possible, a support point immediately before and/or after a curve.
Bending
Radius 10cm: bending tool 1012 of 1015Radius >80cm: bending tool 1018
Maintenance
General advice: impregnate with Goelst silicon spray (1251-250) at least 1x per year.
The Goelst 4701 track has an attractive rectangular profile. It is also frequently fitted in a channel cut into a wooden surface. An attractive, sleek track that can be used in your home or office building.
Features
- The ideal track for sheers and light or medium-weight curtains.
- Aluminium track; easy to bend forward or reverse in different radii
- Concealed mounting on a ceiling or using fixing bracket
- Available as standard in white and natural
- Length: 6m
- Three versions of the rail available – standard – PB pre-punched B and project special PS
- Compatible with the Goelst Flow System for regularly pleated curtains. More info about the Goelst Flow System
- High-quality coated aluminium
The high-quality, carefully selected materials allow curtains to run silently and smoothly, also round bends. The curtain track can be pre-formed to match customer requirements and delivered as a single piece to eliminate the disadvantage of separate bends and joins in the running length.
Specifications
- Material: aluminium
- Coating colours: white RAL9010
High quality wear-resistant, extremely colourfast, UV-resistant coating - Colour: anodised natural aluminium
- Dimensions (hxw): 10 x 15mm
- Profile weight: 137 gr/m
- Maximum supported weight guideline: see fixing guide. An additional support bracket is recommended at points where pleated curtains gather when open.
Bending
The 4701 can be forward or reverse bent to create attractive returns.
- Minimum bending radius: 10cm with bending tool 1012
- Standard bending radius: 10cm with bending tool 1012 or 1015
- Other bending radii: greater than 80cm with bending tool 1018
The Goelst 4701 track has an attractive rectangular profile. It is also frequently fitted in a channel cut into a wooden surface. An attractive, sleek track that can be used in your home or office building.
Features
- The ideal track for sheers and light or medium-weight curtains.
- Aluminium track; easy to bend forward or reverse in different radii
- Concealed mounting on a ceiling or using fixing bracket
- Available as standard in white and natural
- Length: 6m
- Three versions of the rail available – standard – PB pre-punched B and project special PS
- Compatible with the Goelst Flow System for regularly pleated curtains. More info about the Goelst Flow System
- High-quality coated aluminium
The high-quality, carefully selected materials allow curtains to run silently and smoothly, also round bends. The curtain track can be pre-formed to match customer requirements and delivered as a single piece to eliminate the disadvantage of separate bends and joins in the running length.
Specifications
- Material: aluminium
- Coating colours: white RAL9010
High quality wear-resistant, extremely colourfast, UV-resistant coating - Colour: anodised natural aluminium
- Dimensions (hxw): 10 x 15mm
- Profile weight: 137 gr/m
- Maximum supported weight guideline: see fixing guide. An additional support bracket is recommended at points where pleated curtains gather when open.
Bending
The 4701 can be forward or reverse bent to create attractive returns.
- Minimum bending radius: 10cm with bending tool 1012
- Standard bending radius: 10cm with bending tool 1012 or 1015
- Other bending radii: greater than 80cm with bending tool 1018
Advice and tips
- • Advice: Place an additional screw 2314 or ceiling support bracket 4750 on the stacking side(s). See fixing guide.
- • Maintenance advice: for long-term optimal glider performance in every situation, we recommend using Goelst silicon spray 1251-250
- • The lead gliders are suitable for attaching to a pull rod. Using a pull rod to open and close the curtains keeps the fabric clean and prevents stains and signs of wear.
- • The 4701 is particularly suitable for mounting on a smooth surface.
